Fully Automatic Speed Gate Turnstile with Anti-Pinch 45 Persons/Min

Ensure Safety with Anti-Pinch Function in High Speed Gate Turnstile with IR and Current Feedback

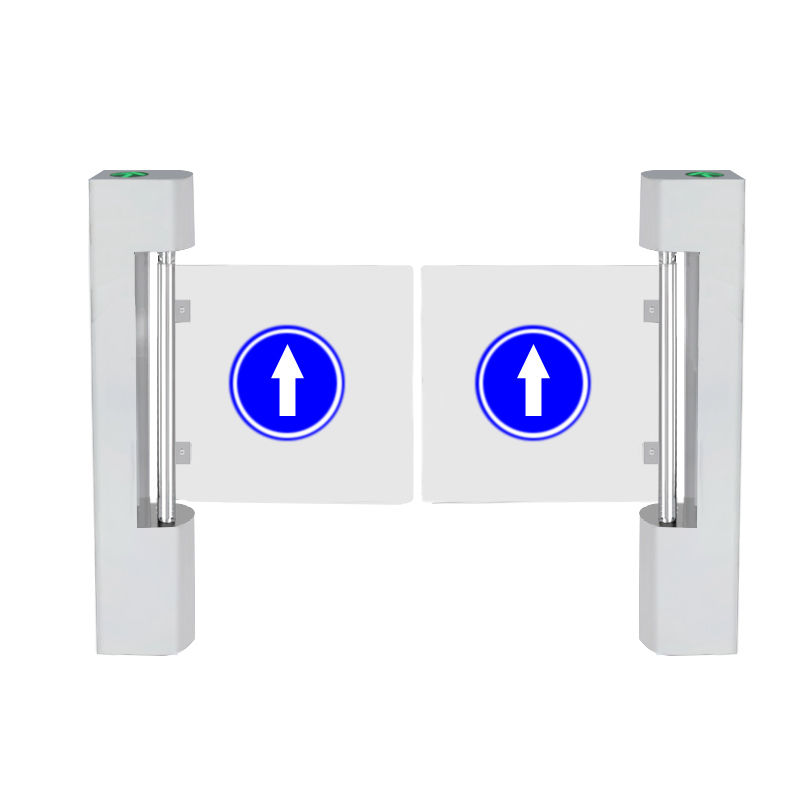

Discriptions of Pillar-Style Speed Gate Turnstile:

     SEWO A Pillar-Style Swing Speed Gate is a common access control and pedestrian management device, primarily used for personnel flow control, security management, and fee collection/ticket verification. It integrates the sleek profile of a pillar structure, the traffic control mechanism of a swing gate, and the high-throughput efficiency of a speed gate.

Features of High Speed Gate:

• Pillar Structure: Refers to the main body's upright columnar design. Typically constructed from robust stainless steel (e.g., 304 grade), offering a modern, aesthetic appearance and enhanced durability/vandal resistance. The pillar houses the core control system, drive mechanism, and sensors.

• Swing Gate Mechanism: Denotes the traffic barrier format. It incorporates one or more horizontally pivoting swing arms (also called wings or barriers). In the locked state, the arms close to form a barrier; when access is granted, the arms swing open rapidly (typically 90 degrees) to create a passageway.

• Speed Gate Functionality: Emphasizes high-throughput pedestrian flow. These gates feature:

  • High-Speed Drive Motors: Enable rapid opening and closing of the swing arms.

  • High-Precision Sensors: Utilize infrared beams, light curtains, radar, or facial/object recognition to accurately detect pedestrian position, direction, and speed, ensuring fast response and safety (anti-pinch).

  • Intelligent Control Logic: Capable of discerning single-person passage, tailgating (piggybacking), and reverse-entry attempts, triggering immediate countermeasures (e.g., alarm, barrier lock).

  • Optimized Passage Width: Single units typically provide a standard passage width (e.g., 550mm-600mm) for efficient single-person transit.

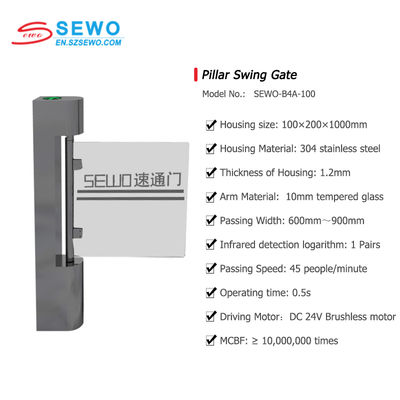

Specifications of Turnstile Speed Gate :

Advantages of High Speed Swing Gate
1). Running stably without noise and mechanical impact
2). The number of the passing persons can be counted via the built-in people counter
3). Several ways of working modes for option
4). Bi-direction or one direction permitted. One forbidden. Or one direction charged.
One for free . And all the working modes set by the buttons in the main control board
5). Beam falling and lifting can be controlled in far distance so to satisfy the special require ment of the users and the request
of fire protection
6). LED Direction-guide lights in the turnstile to tell you whether the direction to go or not
7).The standard electrical interface connected with various kinds of reader and writer equipments
8). All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9). The number of the persons passed can be counted automatically which can also be display in LED
10). The function with or without card-reading memory can be set according to your demand
11). Self-check and alarm for convenient to operate

Applications:

   Widely used in squares, stadiums, gyms, hotel, commercial building, offices , hospital , schools , factories, government agencies, bank, dormitory, library,shopping malls, supermarkets and so on.
